加工機
![加工機](/wp-content/uploads/performance_img001.jpg)

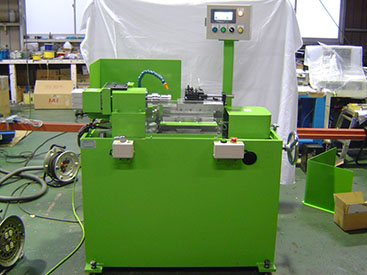

※1分間に最大400溝加工
間欠加工、多回数切削の設定可能。
![加工機](/wp-content/uploads/performance_img002.jpg)

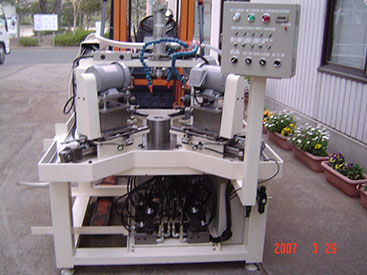

※4方向から同時加工。
![加工機](/wp-content/uploads/performance_img003.jpg)

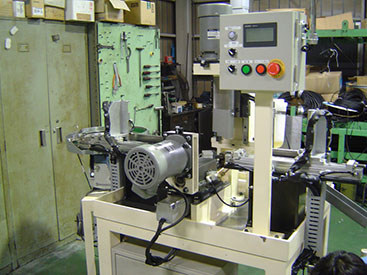

※XY軸NC制御、自動供給・排出。

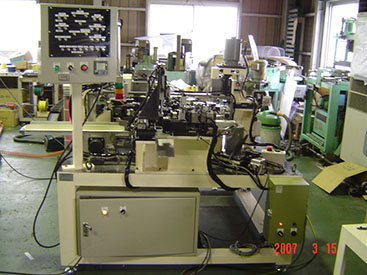

![加工機](/wp-content/uploads/performance_img004.jpg)
![加工機](/wp-content/uploads/performance_img005.jpg)

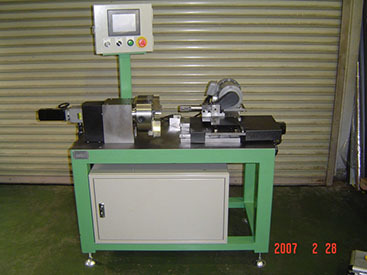

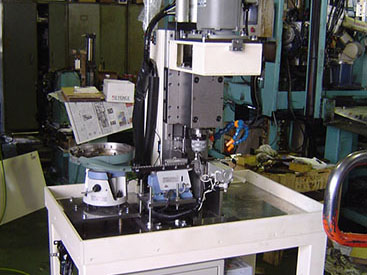

※NC制御のため、内径に多等配の溝加工OK。
![加工機](/wp-content/uploads/performance_img006.jpg)
検査機
![検査機](/wp-content/uploads/performance_img007.jpg)

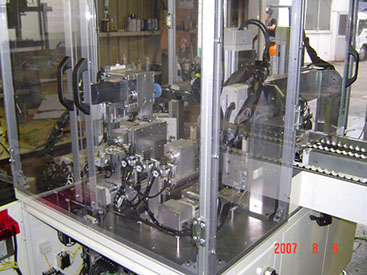

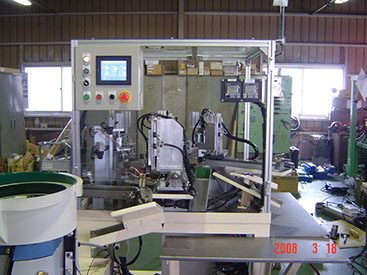

※ロータリー式のため、すべての検査を行っても1製品あたり2.0秒。
また、個々のNGを別排出。
![検査機](/wp-content/uploads/performance_img008.jpg)
※切断前に全長を検査。
12軸NC制御のため、多品種対応。

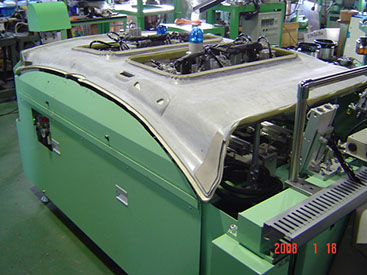

![検査機](/wp-content/uploads/performance_img009.jpg)
![検査機](/wp-content/uploads/performance_img010.jpg)

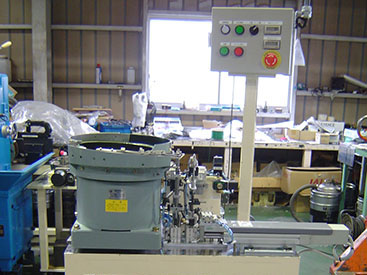

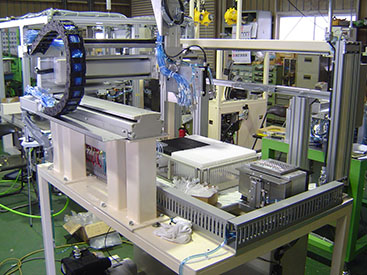

※シート漏れ、製品表面処理の判定を行い、OK・漏れNG・処理NG品を判別排出。(タクト=3.5s/1ヶ)
![検査機](/wp-content/uploads/performance_img013.jpg)
![検査機](/wp-content/uploads/performance_img011.jpg)

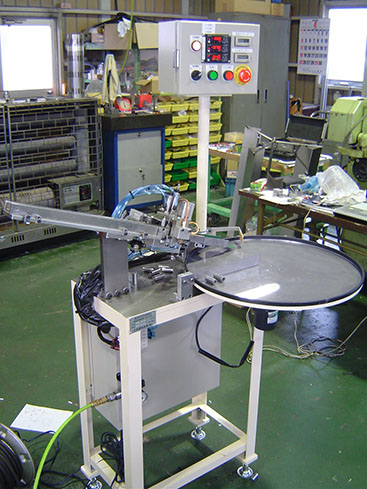

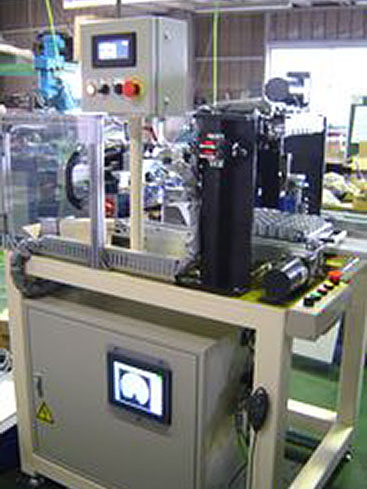

※マグネスケールセンサーを2本使用し、1ステーションで全長測定・ボス測定・差分測定を行います。
(タクト=2s/1ヶ)
![検査機](/wp-content/uploads/performance_img012.jpg)
溶着機
![溶着機](/wp-content/uploads/performance_img014.jpg)

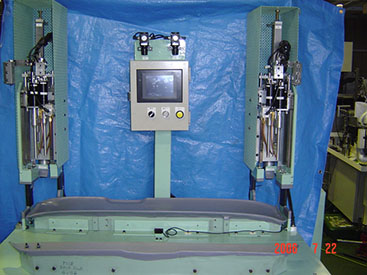

![溶着機](/wp-content/uploads/performance_img015.jpg)

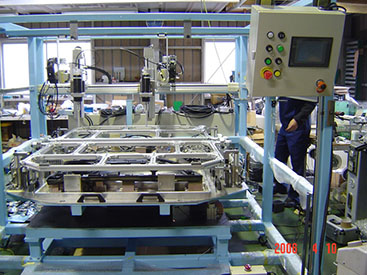

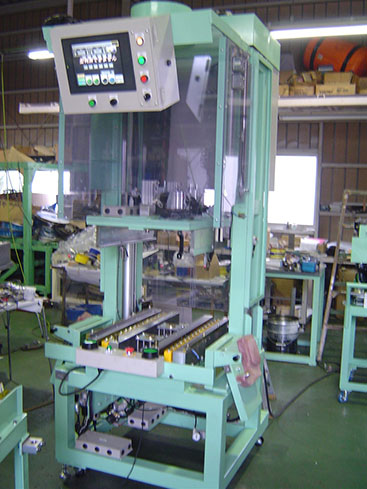

※ロータリー式のため、装置動作中に着脱可能。また、3軸ロボット2搭載。

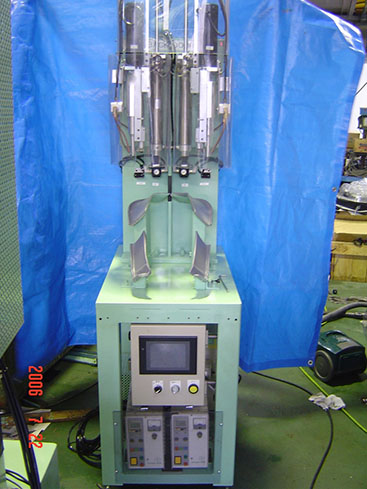

![溶着機](/wp-content/uploads/performance_img016.jpg)
![溶着機](/wp-content/uploads/performance_img017.jpg)
組立機

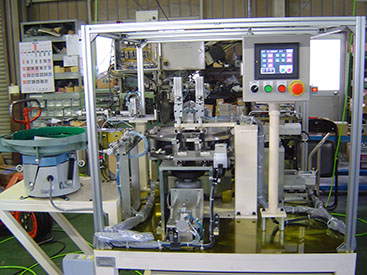

![組立機](/wp-content/uploads/performance_img018.jpg)
供給(搬送)装置
![供給(搬送)装置](/wp-content/uploads/performance_img019.jpg)

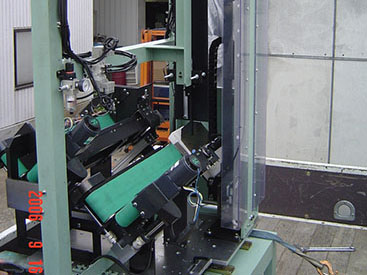

![供給(搬送)装置](/wp-content/uploads/performance_img020.jpg)
その他

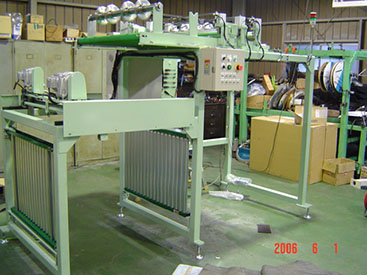

![その他](/wp-content/uploads/performance_img021.jpg)
![その他](/wp-content/uploads/performance_img022.jpg)

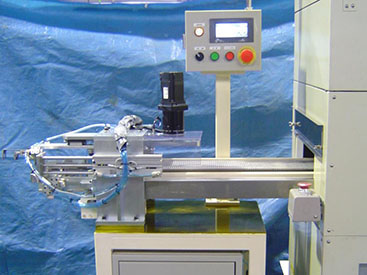

※『毎分50個以上』のプレス加工品をサーボクランク方式により、取り出し→任意の数量に整列→次工程へ排出します。
(取出位置・速度の変更可能。)
